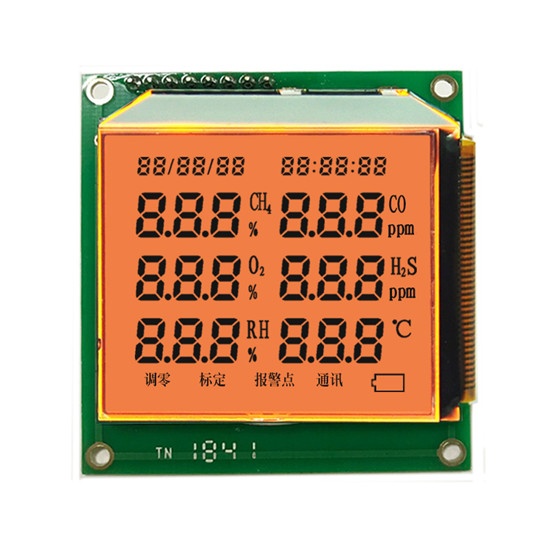

Custom Orange Segment LCD Display Digit LCD With Drive IC
Description:
This is the digit lcd,the dimension size is 50.99x55.0mm,and viewing area is 40.5x37.0mm; FSTN,which the viewing angle is 6 O'clock, working voltage is 3.3V,HT1622 drive IC, could customize according to clients'requirement, 3 pcs orange leds.
Parameters:
LCD Drawing:
If you want to custom a lcd, just feel free to send email to cassie@rxxdisplay.com
This is the digit lcd,the dimension size is 50.99x55.0mm,and viewing area is 40.5x37.0mm; FSTN,which the viewing angle is 6 O'clock, working voltage is 3.3V,HT1622 drive IC, could customize according to clients'requirement, 3 pcs orange leds.
Parameters:
|
1.Product name : |
ENH-SS088256-01 |
|
2.LCD size: |
50.99x55.0mm |
|
3.Viewing area: |
40.5x37.0mm |
|
4.Drive method: |
1/8 duty,1/4 bias |
|
5.Resolution: |
7 digit Segment LCD |
|
6.Display color : |
Orange |
|
7.Viewing angle: |
6 O’clock |
|
8.Display mode: |
FSTN/Positive/Transflective |
|
9.Operating temperature: |
0℃ to +50℃ |
|
10.Storage temperature: |
-10℃ to +60℃ |
|
11.Connector: |
COB |
|
12.Drive IC : |
HT1622 |
|
13.Backlight : |
Orange |
|
14.Working voltage: |
3.3V |

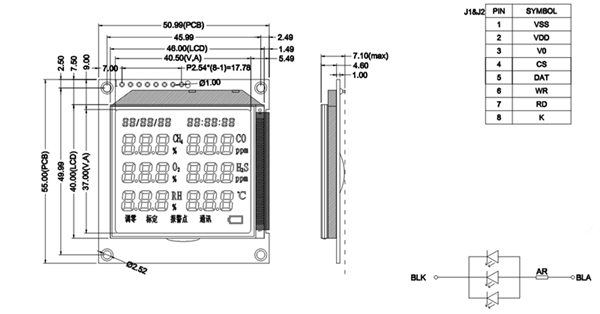

LCD Drawing:
If you want to custom a lcd, just feel free to send email to cassie@rxxdisplay.com
