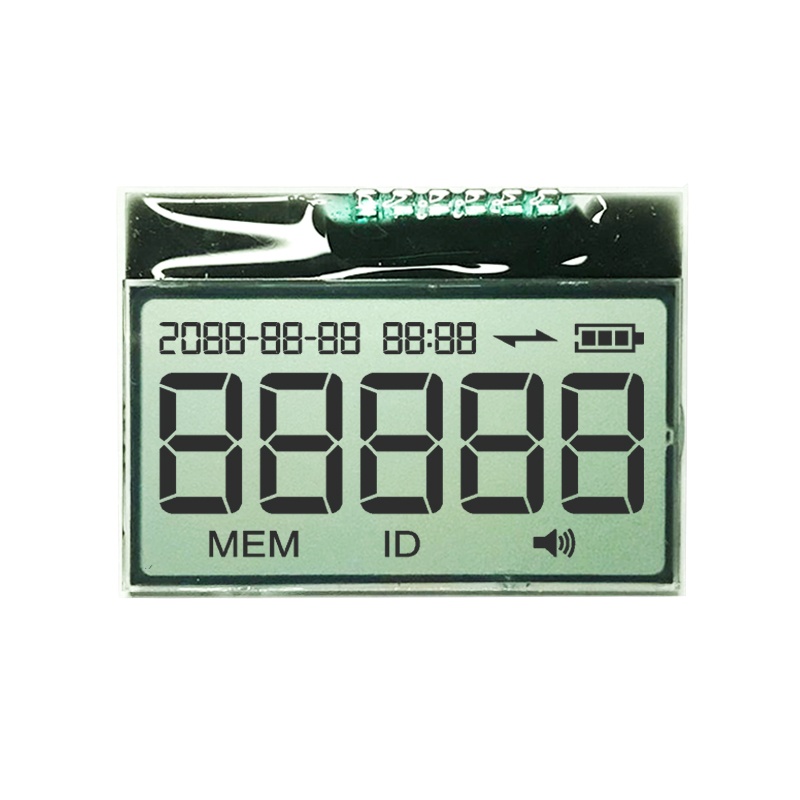

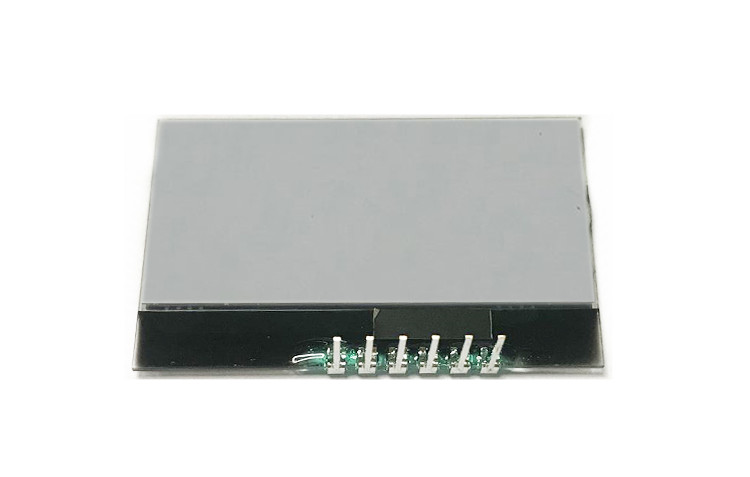

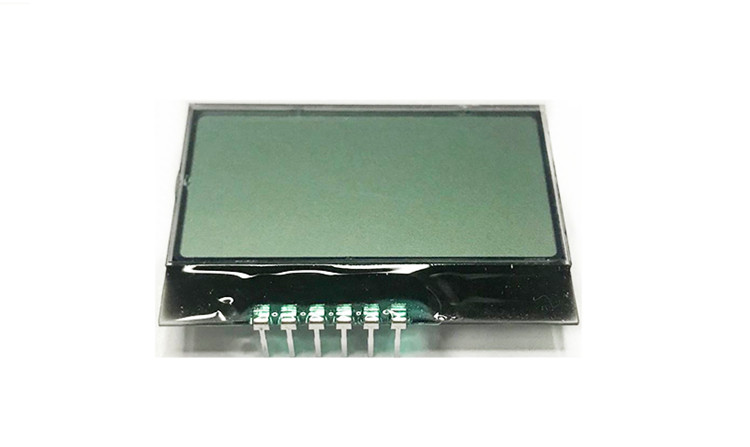

Custom TN Segment COG LCD PIN Connect With UC1671 Driver

1.Product name :

ENH-SG911047-01

2.LCD size:

39x27.4mm

3.Viewing area:

36x18.4mm

4.Drive method:

1/4 duty,1/3 bias

5.Resolution:

COG

6.Display color :

White/black

7.Viewing angle:

6 O’clock

8.Display mode:

TN/Positive/Reflective

9.Operating temperature:

-10℃ to +60℃

10.Storage temperature:

-20℃ to +70℃

11.Connector:

PIN

12.Drive IC :

UC1671C

13.Backlight :

N/C

14.Working voltage:

3.3V
